DF-02 Gravel Hound
Japanese domestic Tamiya grand prix racer

DF-02 Aluminum damper version (with setting tips 04 8/3)





front

rear

etc.

Damper

Stock

Stock

Piston

3holes(OP.573)

Stock 1hole+0.5mm shim

Oil

#600 (OP.444 Blue)

#800(OP.445 Pink)

Tamiya Hop-up options

Spring

Stock.

Stock


Inner spacer

None

None


Initial

None

4.0mm

Std. initial spacer

Bottom stopper

None

5 red O-rings + 2 black O-rings

Tamiya spare parts

Lower set Pos.

In

Center

Shock bracket

Adjustable Teflon ball(Op.488) and 3/20 frat head screw

Toe angle

Toe- out 1.0 dig

Std.

At 1G static

Camber

Std.

Std.

Stock upper arms

Caster

Std.

-




Differential Gear

Oneway(OP.671)

Ball differntial(OP.663)

for TT01

Pinion and Spur gear

67T spur (OP.703)/22T AV pinion (SP.357)

Obligation by Tamiya G.P. regulation



Stock plastic drive shaft

Motor

RS-540 Sports tuned motor

Upper arm joint flange pipes (SP.593) , 3/20 button head screws and aluminum lock-nuts
Suspension-shaft

TL01 option (OP.301)

TL01 option (OP.301)

(OP.539) aluminum spacer

(F2.5mm R1.0mm/1.5mm)
Lower arm joint

Stock U-Shaft


Adjustment by shim

noting

both in and out 0.5mm


Steering servo SANWA / SDX-755
Speed control NOVAK / GT-7

Drive profile no.4
Receiver SANWA / RX-311


Total weight 1595g

At rotation, both bevel gear and ring gear will move for outside.

Bevel gear touches bulkhead and it may generate a loss.
So, I deleted the portion which a gear touches.

The slot of the drive-cup (same as TGS's) is shallow.

When a stroke is long, a pin will interfere in the inner part of a slot, and an operation angle will be regulated.

At standard, It can't be full-steering.

The inside of a circle was deleted by using the stick file and diamond file, so interference was prevented.

After the operation they get the longer stroke level than kit-standard and the smooth drive.
Also give rear-drive-cup same processing.
Use long screws, lock-nuts and flange-pipes to the joints of upper arms, C-hubs, and uprights. Otherwise, you'll get  the suspension trouble on the race.
This pic shows an example.
Stock Chassis is very heavy. So I made many holes at the chassis and the bumper. they lightened 40 gram.
The merit of Adjustable-Teflon-balles.

It is hard to drop, and shock-resistant.

Since the distance from joints is short than standard ball-ends, so shock-tower cannot be twisted easily.

Screw-heads will defend top of shocks from accident.

etc.
There are few loading spaces, small RC mechanism is desirable. High-end Servo is unnecessary, because steering system is weak and fuzzy.

So standard servo saver looks enough.

I recommend making "ESC bed" by sponge and Lexan-sheet. The trouble by the shock can be prevented
The simplest way to set a transponder is to make 7.0mm hole in this position.

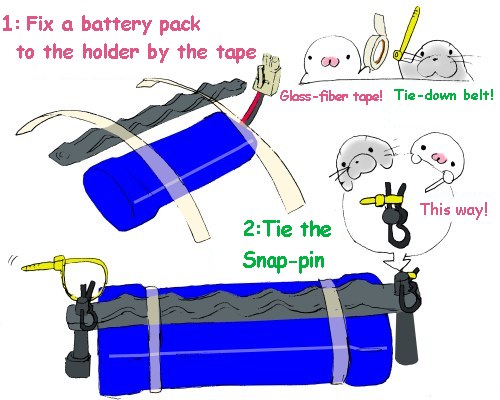

Fix your battery to the holder by Fiber-Glass tape. It will be keeping hanging on at hard ride.



"DF-02 aluminum damper" is followed.
